Digital pressure gauge series

YS60

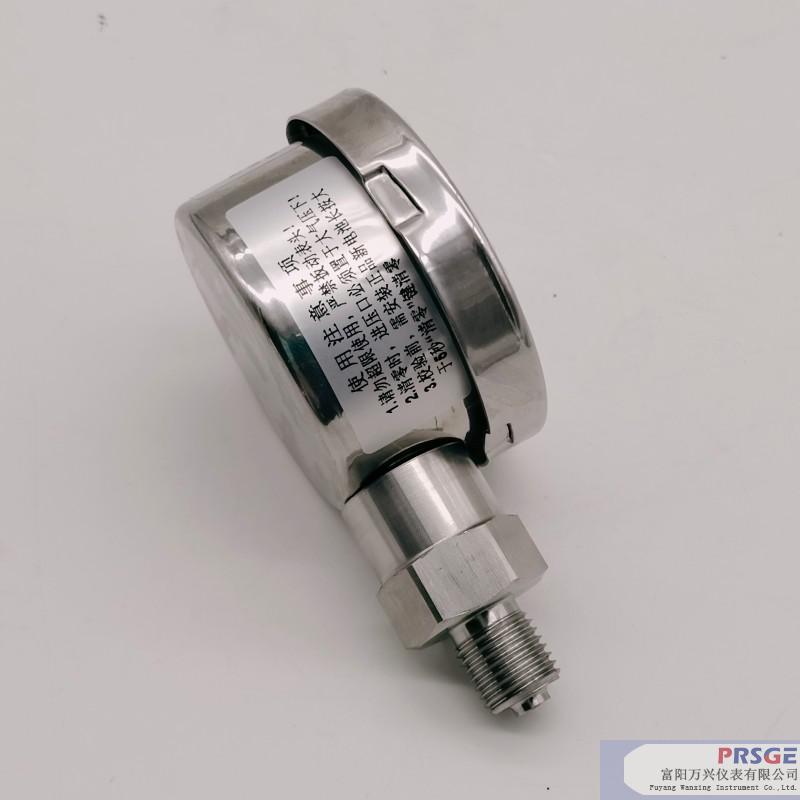

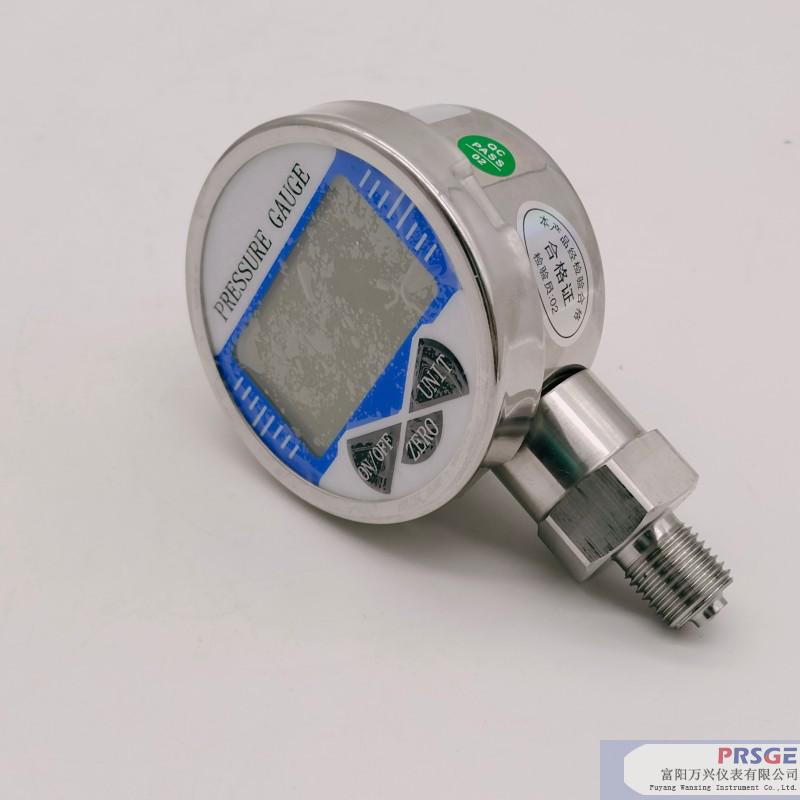

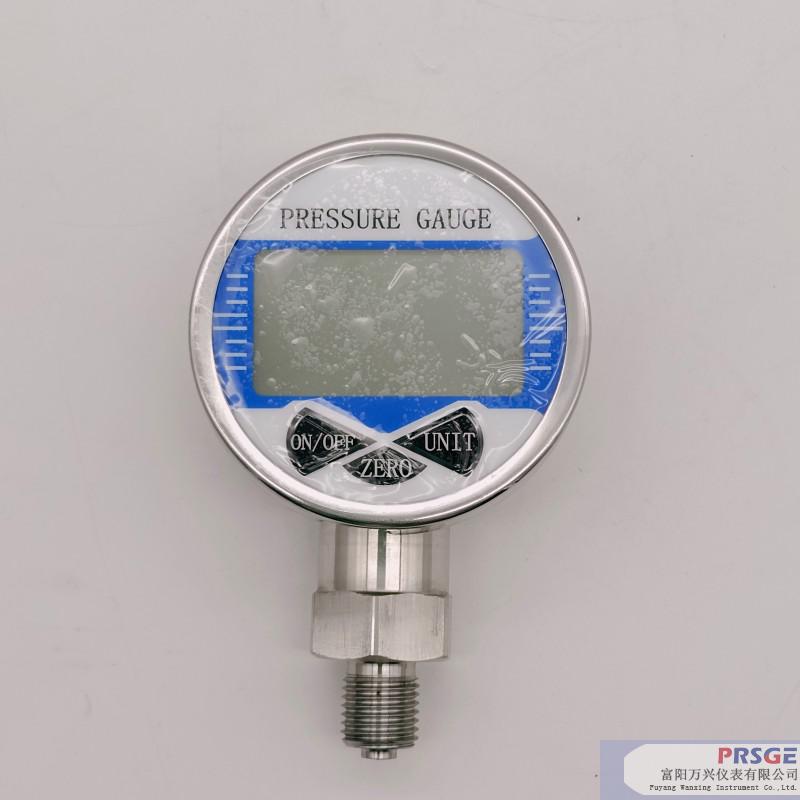

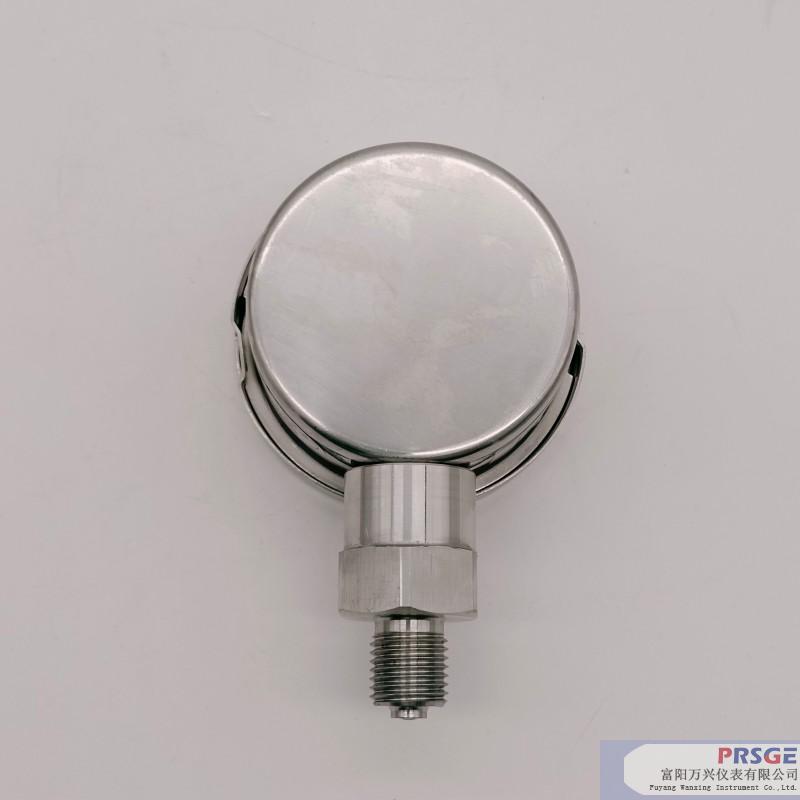

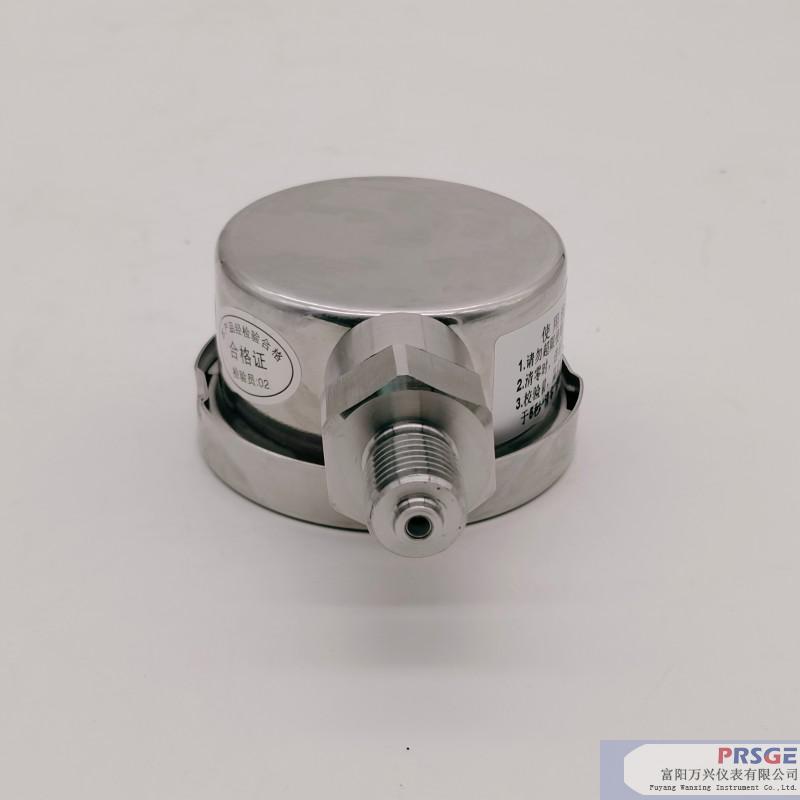

Name: Precision Digital Pressure Gauge
Dial diameter: 60mm
Installation method: Bottom installation
Product description: The gauge for the whole electronic structure, the United Statesimported 16 CPU processor, a super anti-jamming capability, fast sampling rate.
INQUIRY

Performance and technical indicators

Product name	Precision Digital Pressure Gauge
Measuring range	-0.1~0~100MPa (Can be customized)
Measuring medium	Gas,liquid,oil,water
Atmospheric pressure	(86~106) kPa
Accuracy	0.5%FS; 0.2%FS
Respond time	<0.1S
Humidity	≤ 85%
Long-term stability	0.2% FS/year
Thread type	*M201.5, G1/2, G1/4 (Can be customized)**
Dial size	60mm (Can be customized)
Display digits	4 digits LCD display
the battery life	one year
Shell material	3.6V internal lithium battery two
the working environment	-20~60℃
