Diaphragm pressure gauge series

YN60PP

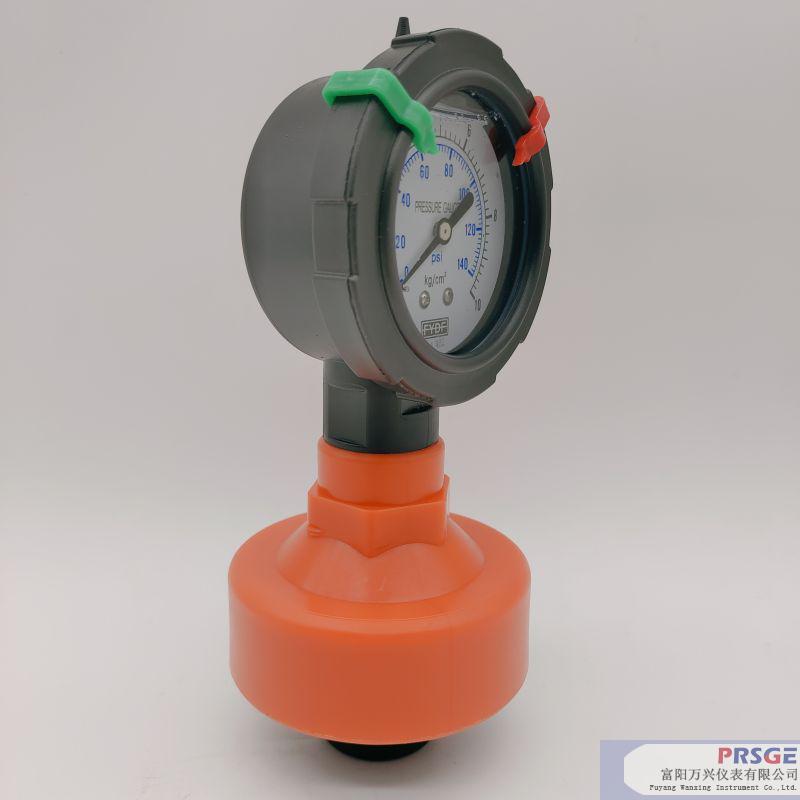

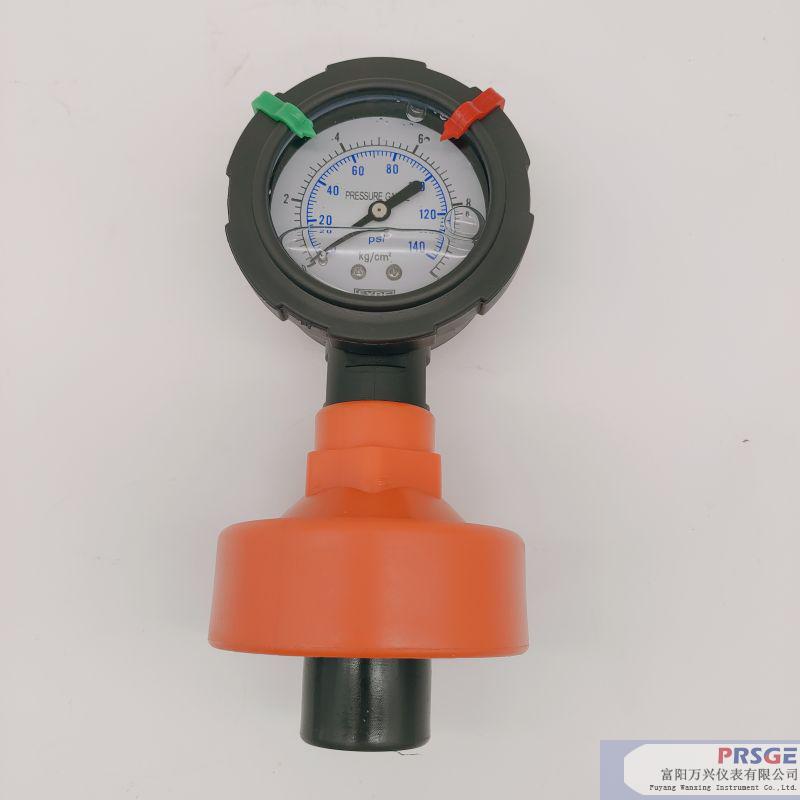

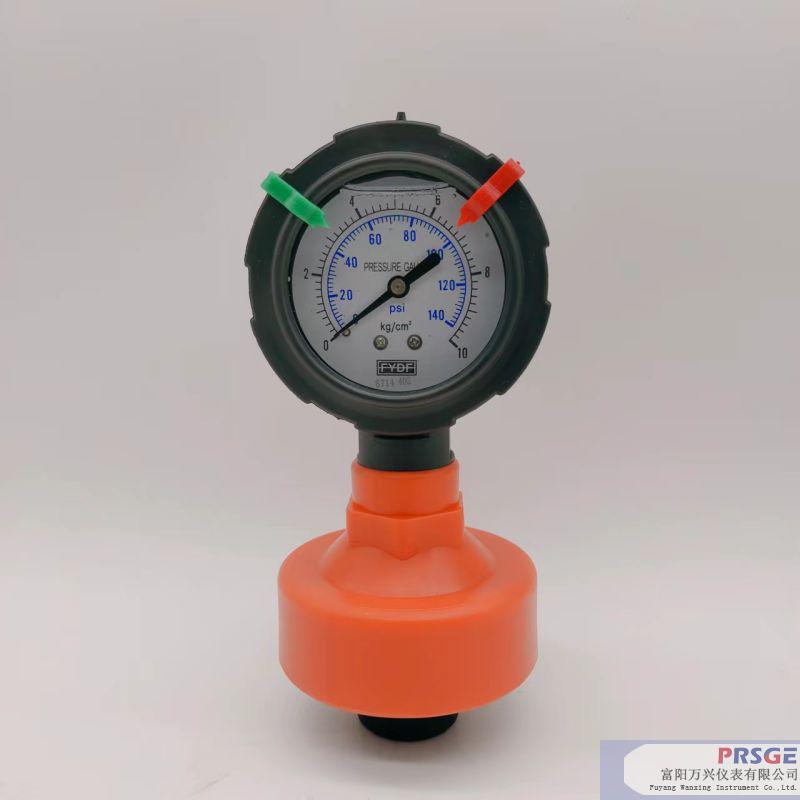

Name: UPVC Diaphragm Pressure Gauge
Dial diameter: 60mm

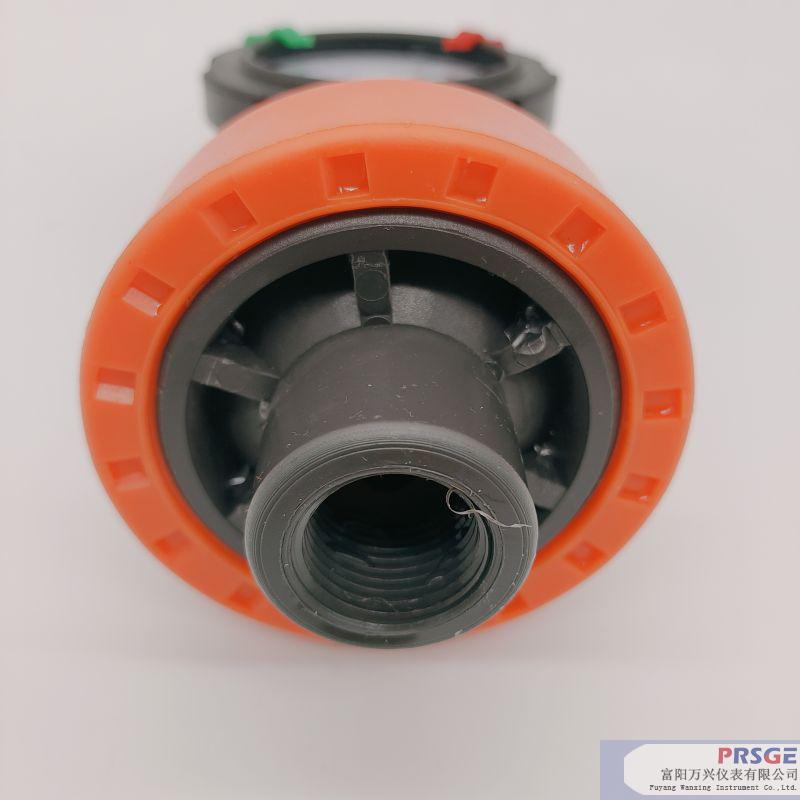

Installation method: Bottom installation
Product description: Diaphragm pressure gauge measures corrosive, viscous, or high-temperature liquids in petroleum, chemical, and food industries.
INQUIRY

The Main TechnicalIndicators

Accuracy: universal pressure and equipped with the same instrument

Measuring range: -0.1 ~0Mpa to0 ~ 60Mpa series (thread) -0.1 ~ 0Mpa to 0 ~ 25Mpa series (flange)

Measured medium temperature range: -40 -70 ℃ (direct type) -10 - 200 ℃ (angular type, type of hose, tube type)

Working fluid: silicone oil, glycerol solution (food industry-specific)

316L stainless steel for sulfides and oxides

Structural principle

Diaphragm pressure gauge isolator by thediaphragm, the connecting pipe pressure portand universal instrument of three parts, and in itscavity filled with fluid in accordance with theappropriate requirements of the measuredmedium.

Diaphragm pressure gauge works shown. Whenthe pressure P measured medium on drydiaphragm, so that deformation, compressedworking fluid filling inside, making the formationof a working solution with P considerablepressure P, the working fluid by means ofconduction, so that the pressure of the instru-ment elastic element (spring tube) to produce thecorresponding free end of the elastic deformation-displacement, and then mated pressure gaugeworks show the measured pressure values.
