Resistance/differential remote pressure gauge series

Y150BWK

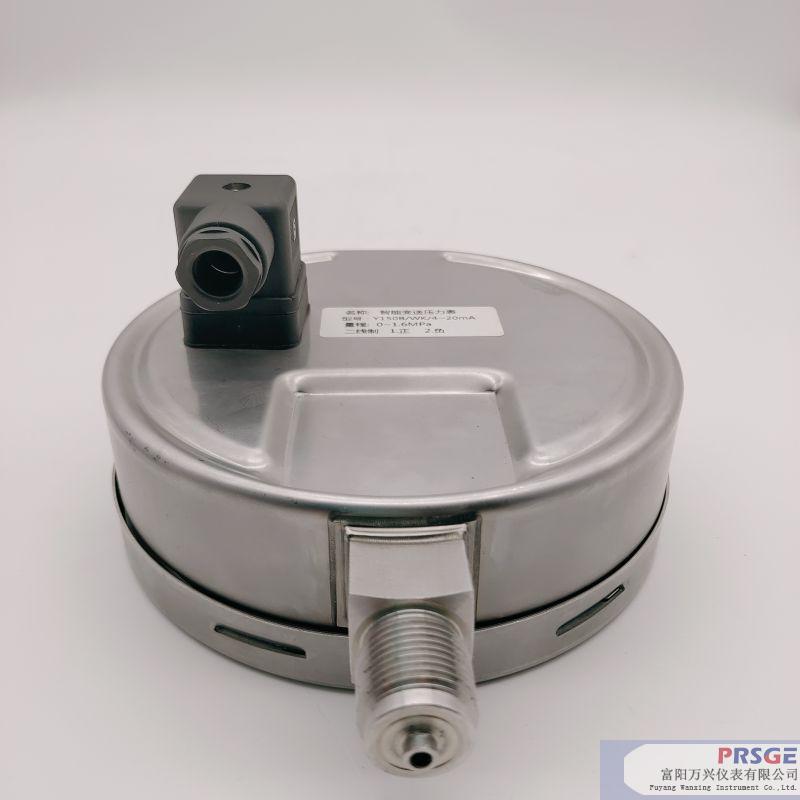

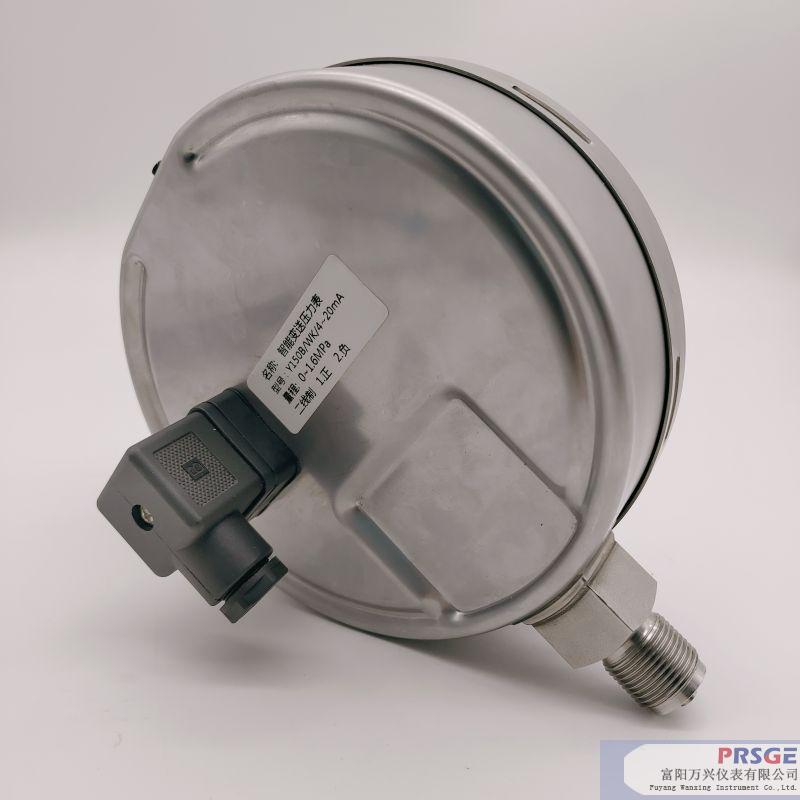

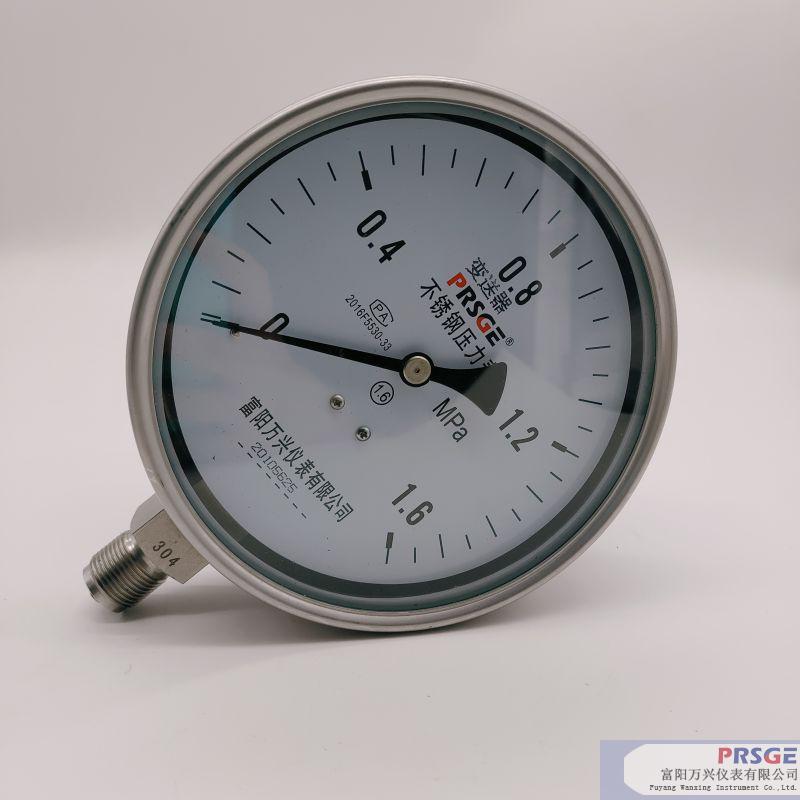

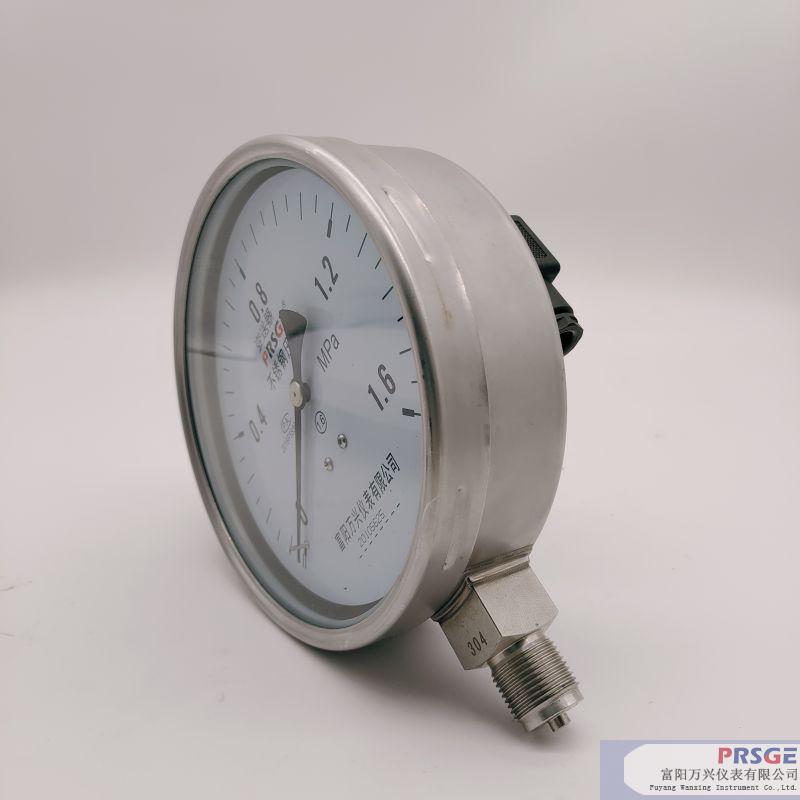

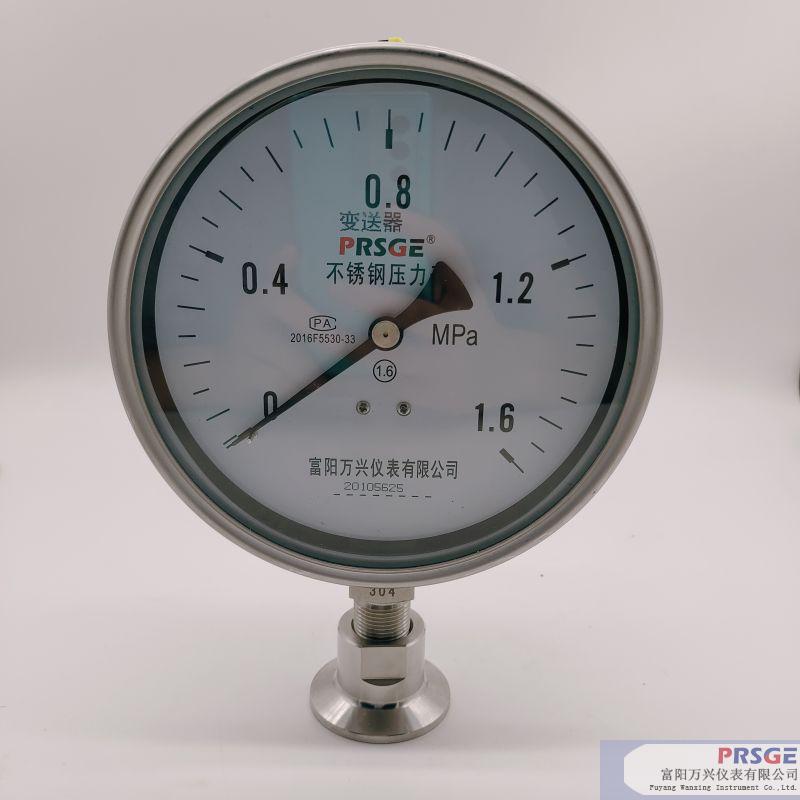

Name: Stainless Steel Remote Transmission Pressure Gauge
Dial diameter: 150mm
Installation method: Bottom installation
Product description: Pressure gauge with resistance transmitter suitable for measurement of steel and do not corrodecopper alloy liquids, vapors and gases and other media.
INQUIRY

Range

Accuracy: 1.6Initial resistance value sent: 3~20Ω

Transmitter full scale resistance value: 340~400Ω

Transmitter terminals ①② applied voltage isnot greater than 6V

Slip resistance transmitter wiring diagram

Environmental Conditions: -40 ~ 60 ℃,relative humidity less than 85%, and a sharppulsating vibration and measured (controlled)media response to the instrument work hadno effect.Temperature:Temperature deviation from 20+ 5 ℃, its additional temperature errorThe difference is not more than 0.4%/10 ℃
And secondary instrument XMY-10 digitalpressure indicator and pressure XMY-12digital display controller supporting the wiringdiagram.
