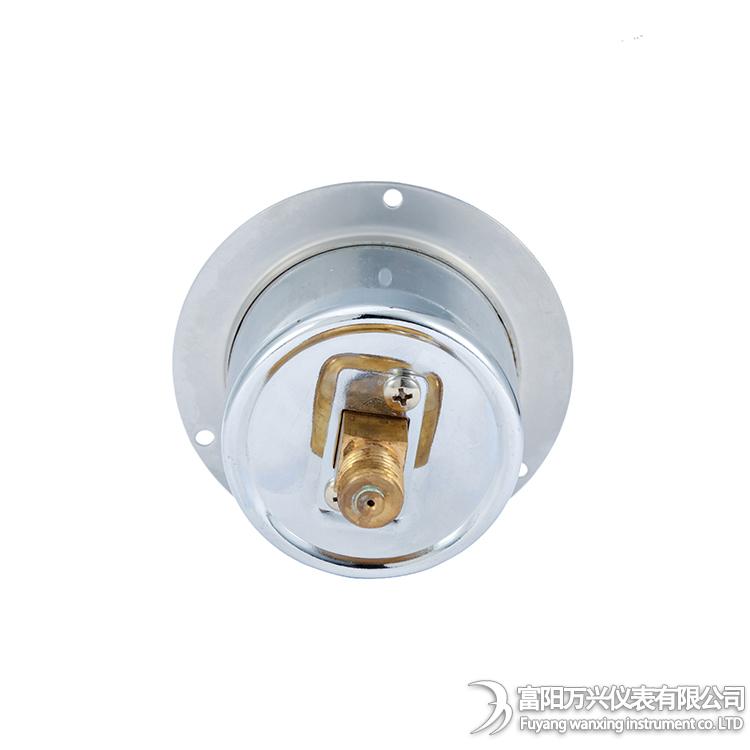

Diaphragm pressure gauge series

YEN75ZTBF1

Name:Micro pressure gauge
Dial=75mm
Feature:Used in boiler ventilation and gas pipelines
Installation method:Axial
Product description: Membrane pressure gauge Micro pressure gauge
INQUIRY

Membrane pressure gauge

Membrane pressure gauges are suitable for measuring micro-pressure and negative pressure that do not corrode copper alloys and are not explosive. Gas is widely used in boiler ventilation and gas pipelines, and the bellows pressure gauge can be installed on site and instructed on site.

Model	Scale Range(Kpa)			Accuracy class
Model	Positive	Nefative	Positive &negative	Accuracy class
YE-75 YE-60 YE-60ZT YE-100 YE-150	0~1.6	-1.6~0	-0.8~+0.8	2.5
	0~2.5	2.5~0	-1.2~+1.2
	0~4	-4~0	-2~+2
	0~6	-6~0	-3~+3
	0~10	-10~0	-5~+5
	0~16	-16~0	-8~+8
	0~25	-25~0	-12~+12
	0~40	-40~0	-20~+20
	0~60	-60~0	-30~+30
	0~100	-100~0	-50~+50
