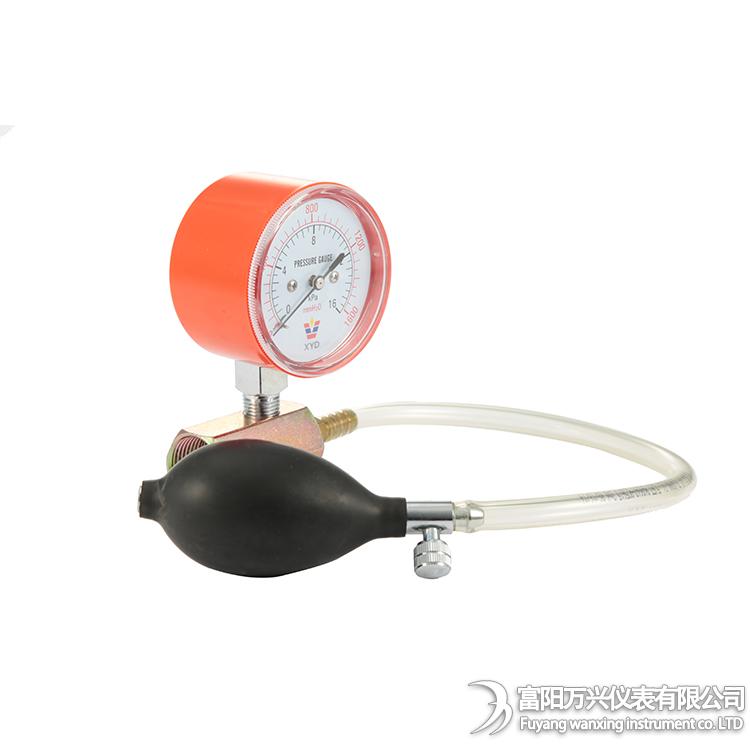

Diaphragm pressure gauge series

YE6

Name:Membrane pressure gauges
Dial=63mm(2.5inch)-150mm(5inch)
Feature:Used in boiler ventilation and gas pipelines
Installation method:Radial
Product description: Membrane pressure gauges are suitable for measuring micro-pressure and negative pressure that do not corrode copper alloys and are not explosive. Gas is widely used in boiler ventilation and gas pipel
INQUIRY

Membrane pressure gauges are also known as micro pressure gauges. It is suitable for measuring low micro pressure of liquid, gas or steam which is free from explosion hazard, non-crystalline, non-solidified, and corrosive to copper and copper alloys.

Model	Scale Range(Kpa)			Accuracy class
Model	Positive	Nefative	Positive &negative	Accuracy class
YE-75 YE-60 YE-60ZT YE-100 YE-150	0~1.6	-1.6~0	-0.8~+0.8	2.5
	0~2.5	2.5~0	-1.2~+1.2
	0~4	-4~0	-2~+2
	0~6	-6~0	-3~+3
	0~10	-10~0	-5~+5
	0~16	-16~0	-8~+8
	0~25	-25~0	-12~+12
	0~40	-40~0	-20~+20
	0~60	-60~0	-30~+30
	0~100	-100~0	-50~+50
