Intelligent digital instrument

YSX100

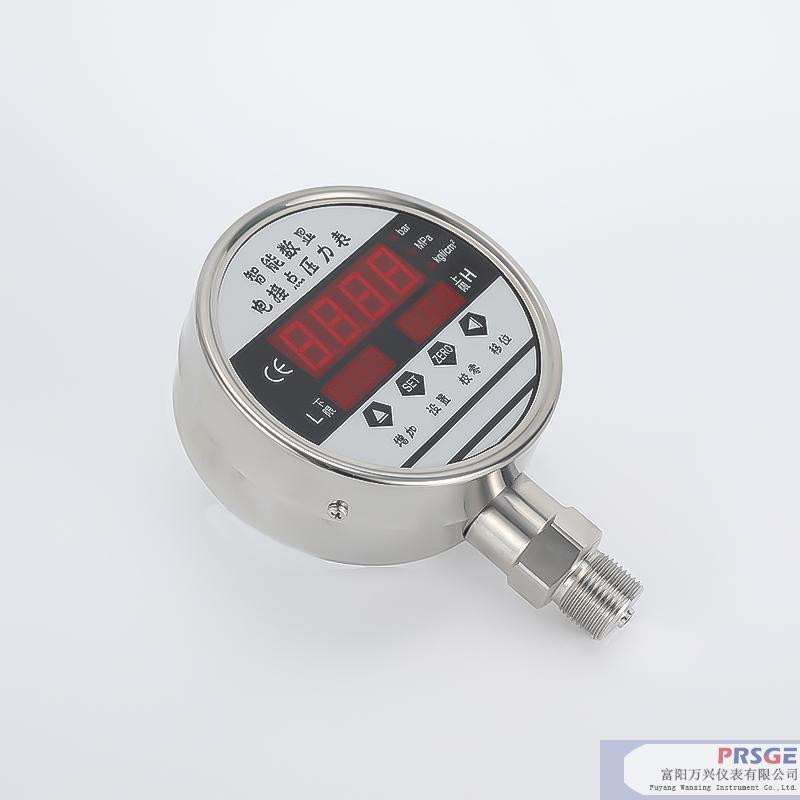

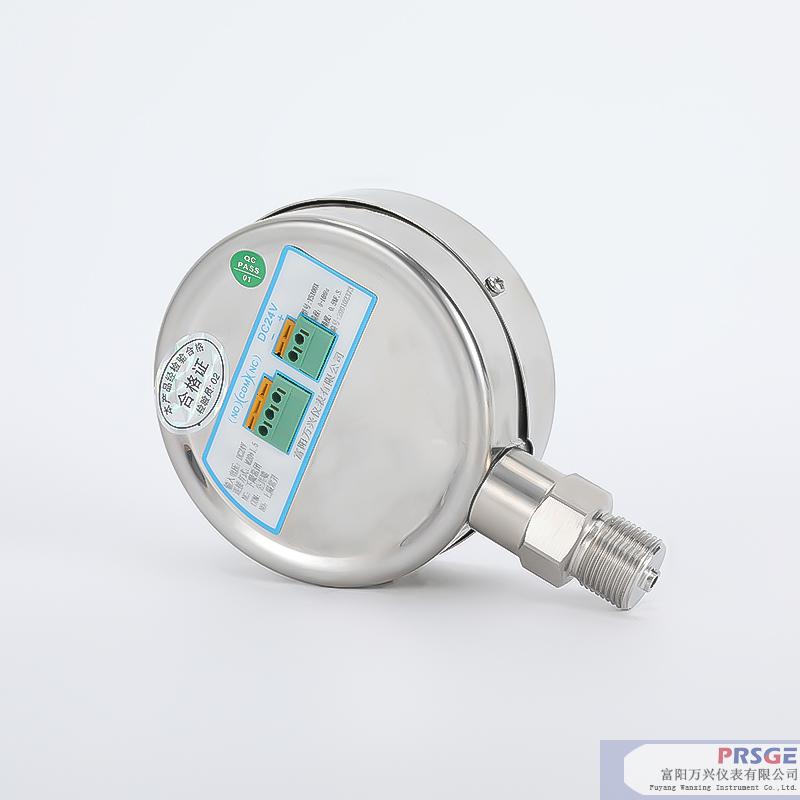

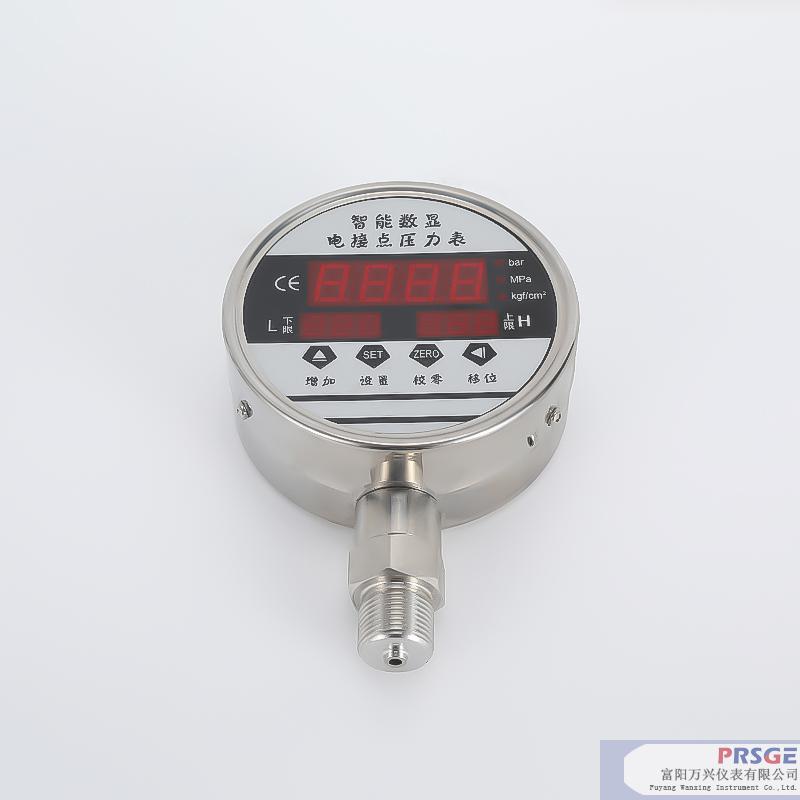

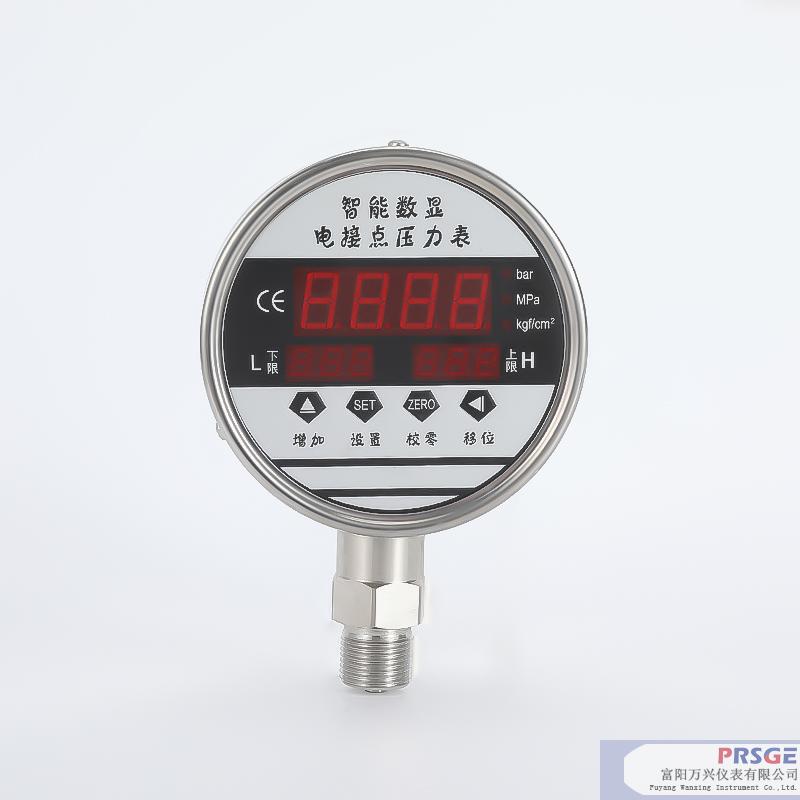

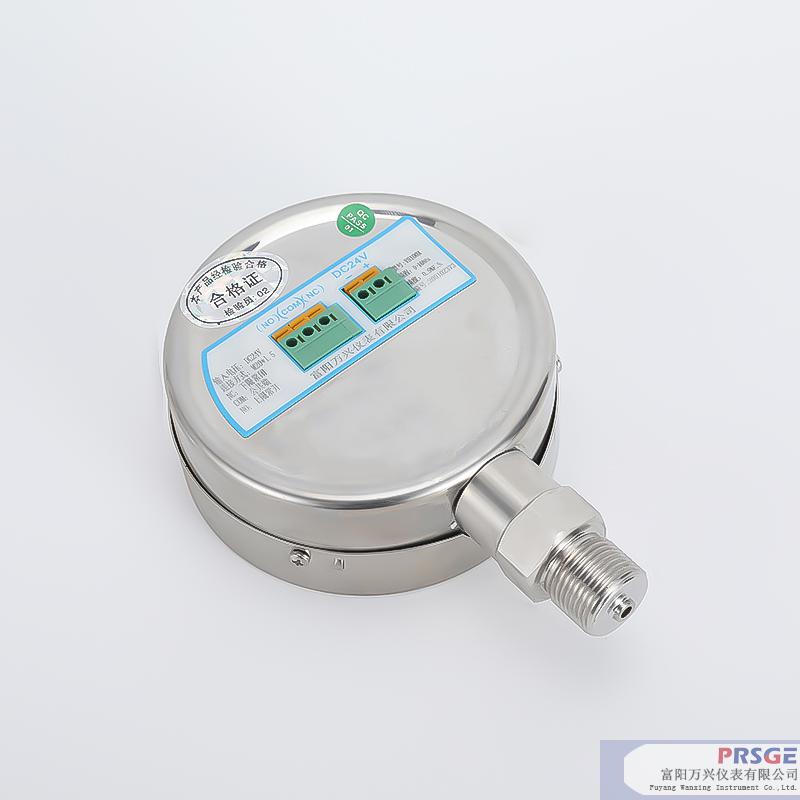

Name: Intelligent Digital Electric Contact Pressure Gauge
Dial diameter: 100mm
Installation method: Bottom installation
Product description: YS-100X intelligent digital pressure gauge is fully electronic structure, imported 16-bitmicrocontroller, a super anti-jamming capability, fast sampling rate.
INQUIRY

Performance and technical indicators

Product name	Intelligent Digital Electric Contact Pressure Gauge
Measuring range	-0.1~0~100MPa (Can be customized)
Measuring medium	Gas,liquid,oil,water
Atmospheric pressure	(86~106) kPa
Accuracy	0.5%FS; 0.2%FS；0.1%FS
Respond time	<0.1S
Humidity	≤ 85%
measuring pressure transmitter signal output	①) 0 ~ 5V (2) 4 ~ 20mA
Power supply	A: AC ~ 220V power supply; B: DC 24V power supply (1: red "+", 2.Green "_")
Dial size	100mm (Can be customized)
Display digits	4 digits LCD display
the battery life	one year
Shell material	3.6V internal lithium battery two
the working environment	-20~60℃
