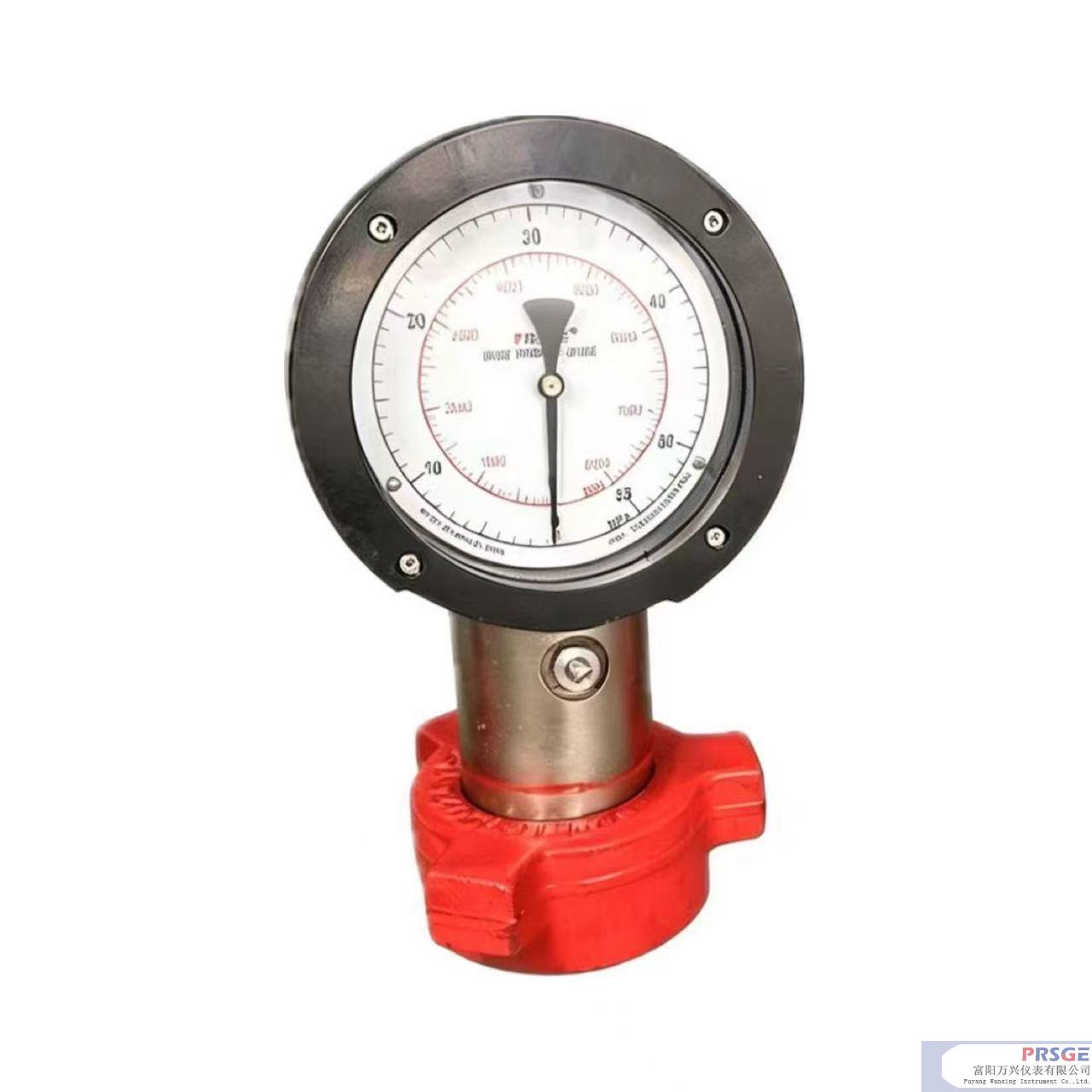

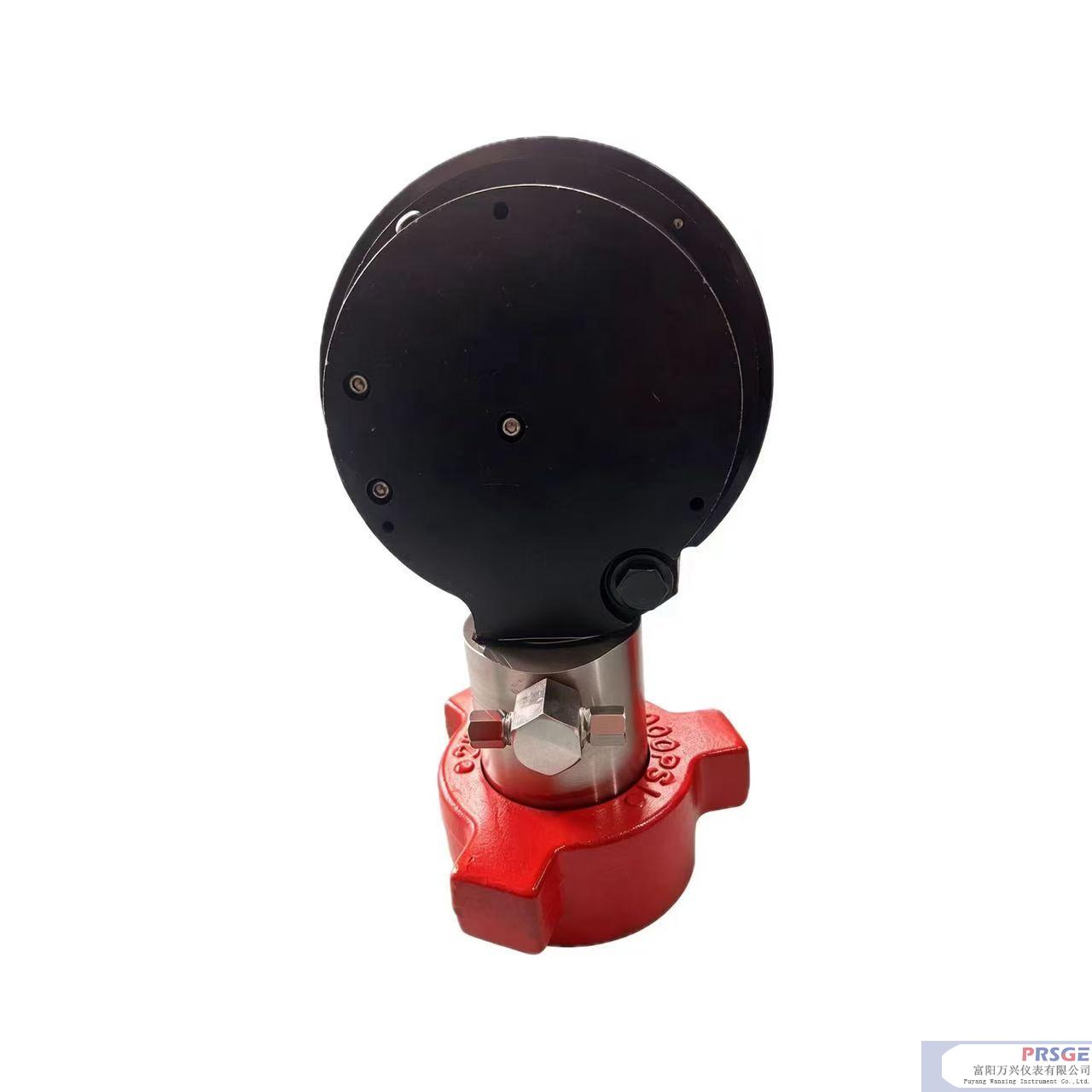

General pressure gauge series

Y

150mm
stainless steel
Product description: Introduction The operation and maintenance manual is intended to help operators and maintenance personnel install use and maintain the product correctly,. This manual can be used as a reference, but
INQUIRY

1. Pressure range: 0-8000psi (55MPa);

2.Applicable media: applicable to drilling fluid, cement, acidizing fluid and other media;

3. Working temperature: - 45 ℃ - + 75 ℃;

4. System installation:

4.1 the system is an integrated vertical installation structure, which integrates instruments, dampers, sensors, union nuts. 1502 union nuts are used in the system. The user can screw it directly on the union joint when

using it. It is recommended to install the stop valve before installing the system to facilitate daily

maintenance. During disassembly, remove the load and close the stop valve, unscrew the union nut and disassemble the instrument.
